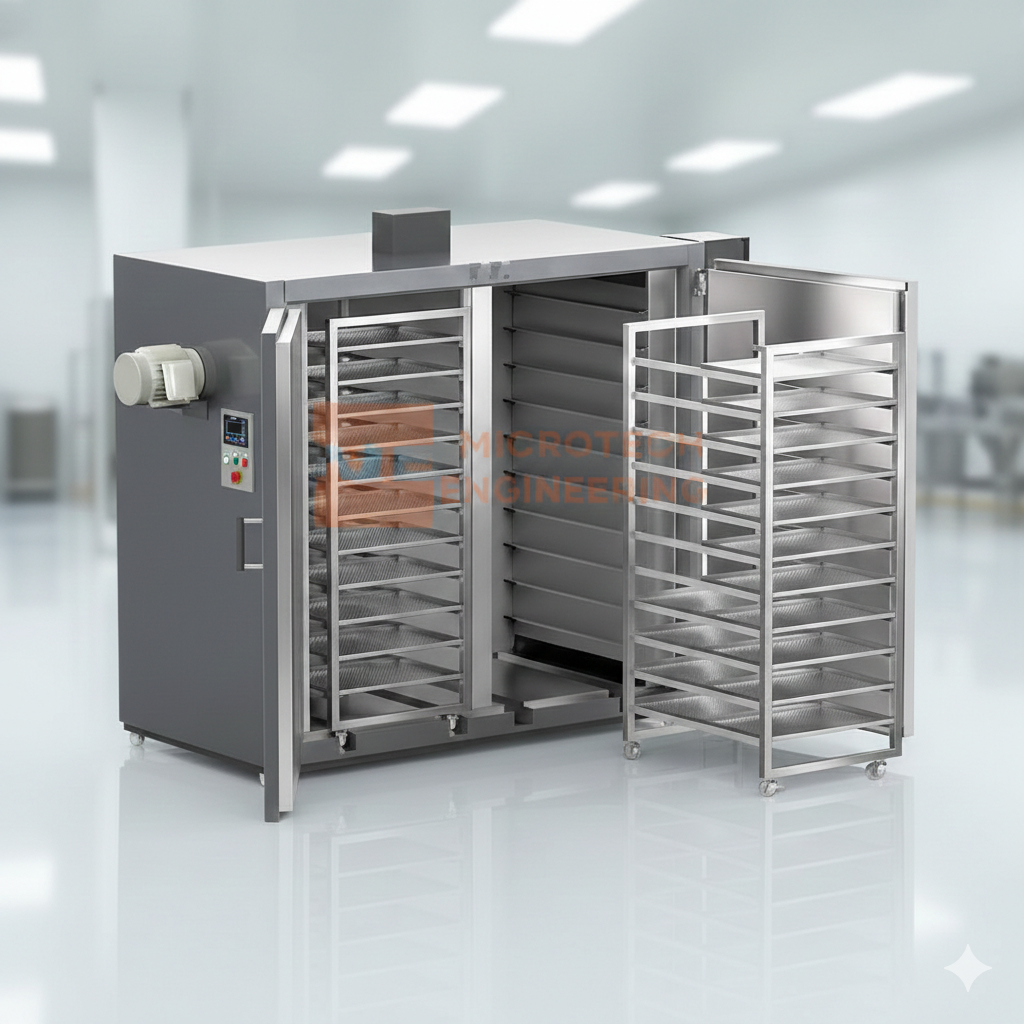

Stainless Steel Air Tray Dryer

Product Overview

Microtech Engineering manufactures industrial Stainless Steel Air Tray Dryers designed for controlled drying and dehydration of pharmaceutical granules, powders, chemicals, herbs, food products, and other heat-sensitive materials requiring precise temperature and humidity control. Our tray dryers utilize forced hot air circulation technology to achieve uniform drying across all trays, ensuring consistent moisture content and product quality throughout the batch. The drying chamber is constructed from heavy-duty stainless steel (SS 304 or SS 316 depending on product contact requirements) with reinforced insulation to minimize heat loss and improve energy efficiency. Hot air is generated using electric heaters, steam coils, or thermic fluid heat exchangers depending on site requirements and temperature specifications, with capacities ranging from 3 kW to 50 kW for electric models. The circulation fan is mounted on a heavy-duty motor with belt drive transmission, creating positive airflow across all tray levels to ensure even heat distribution without hot spots or cold zones. Digital temperature controllers with PT100 RTD sensors provide accurate temperature regulation from ambient to 120°C with a precision of ± 2°C, essential for thermally sensitive pharmaceutical products and biological materials. The dryer accommodates multiple stainless steel trays (24 to 192 trays depending on model size) with perforated or solid construction based on product characteristics, arranged on slide-in trolleys for easy loading and unloading, reducing operator effort and cycle times. For cleanroom and aseptic processing applications, the dryer can be fitted with HEPA filtration on air inlet and exhaust to maintain classified air quality and prevent cross-contamination. The unit features insulated doors with silicone gaskets for effective sealing, pressure relief vents for safety, and observation windows for visual monitoring of drying progress. Temperature and time are continuously displayed and can be connected to data loggers or SCADA systems for GMP documentation. Our air tray dryers comply with cGMP standards with all product contact surfaces electropolished or passivated, fully documented material certifications, and validation support for DQ, IQ, OQ qualification protocols. We offer both standard models and custom-engineered systems to match specific throughput requirements, floor space constraints, and product characteristics.

Key Features & Specifications

• Material: SS 304 / SS 316 contact parts
• Capacity: 24 to 192 trays
• Uniform air circulation with motorized fan
• Digital temperature controller (up to 120°C)
• Powder-coated outer body or full SS
• GI / SS ducting with insulation
• HEPA filter provision for clean-room use
• Steam, electric, or thermic oil heating option
• Easy loading and unloading trolley
